complete fully automatic 3 in 1 glass bottle beer vacuum filling line beer drinking fillng machine

FOB Reference Price:Get Latest Price
US $0-29,000 / Sets | 1 Set/Sets beer drinking fillng machine (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Product Type:
Beer
Alcohol Content (%):
0.05
Type:
beer drinking fillng machine, Filling Machine, 3 -in-1
Variety:
beer drinking fillng machine
Color:
Light
Processing Type:
beer drinking fillng machine
Packaging:
Bottle, beer drinking fillng machine
Shelf Life:
12
Weight (kg):
2000
Place of Origin:
Jiangsu, China
Brand Name:
JST
Model Number:
BGF 14-12-4, BGF 14-12-4 glass bottle beer filling machine
Brand name:
beer drinking fillng machine
Packaging Type:
Pa Barrel, Bottles, Cans, Cartons, beer filling machine
Voltage:
made to client's order
Bottle size:
330ml,
Packaging Material:
Glass, Metal, Plastic, beer filling machine
Power:
3.4kw
Automatic Grade:
Automatic
Dimension(L*W*H):
2400x1400x2500
Supply Ability
Supply Ability:
1000 Set/Sets per Year beer drinking fillng machine
Packaging & Delivery
Packaging Details
beer drinking fillng machine packed in standard wooden cases
Port
shanghai
Lead Time :
within 30 days after we get your 30% deposit and bottle samples
Product Description

beer drinking fillng machine  , glass bottle beer vacuum filling plants, factory price full-automatic   beer vacuum filling plants.

beer drinking fillng machine video website:http://youtu.be/i_QzrAaX6Bc

This BGF Wash-filling-capping 3-in-1unit:Beverage Machinery is used to produce beer filling machine. The BGF Wash-filling-capping 3-in-1unit:beer Machinery can finish all the process such as press bottle, filling and sealing, it can reduce the materials and Outsiders touch time, improve the sanitary conditions, production capacity and economic efficiency.

 1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts isenough..
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.

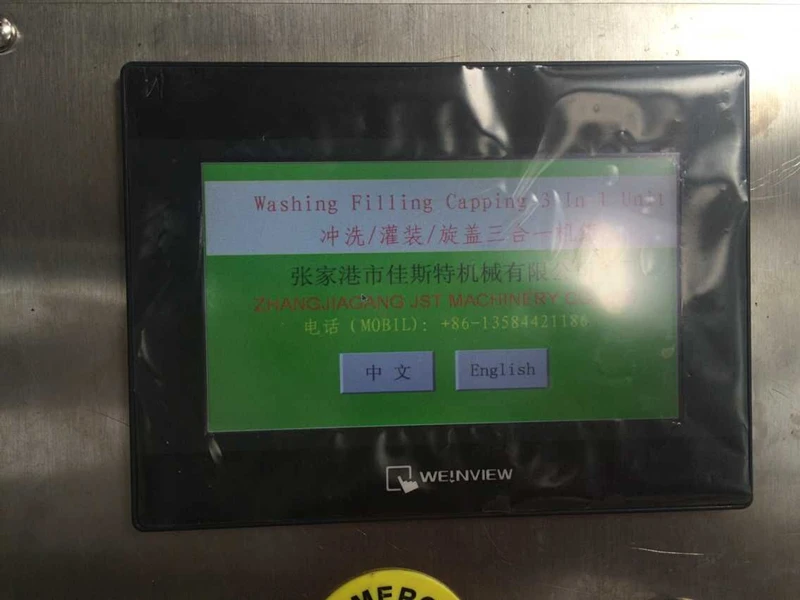

6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan\'s Mitsubishi, France Schneider, OMRON.

 glass bottle beer filling machine Technical parameters:

Model

Washing

heads

Filling

heads

Capping

heads

Capacity(b/h)

500ml

Motor power

(KW)

Overall dimension

(mm)

BFG14-12-4

14

12

4

2000bph

1.5KW

2500x1700x2500

BFG18-18-6

18

18

6

3000bph

2.2KW

2800x1900x2650

BFG24-24-8

24

24

8

5000bph

3KW

3000x2100x2650

BFG32-32-10

32

32

10

8000bph

4KW

3500x2500x2650

BFG40-40-10

40

40

10

12000bph

7.5KW

4000x1800x2650

BFG48-48-12

48

48

12

15000bph

9.5KW

4500x4500x3400

BFG60-60-15

60

60

15

20000bph

12KW

5000x4500x3400

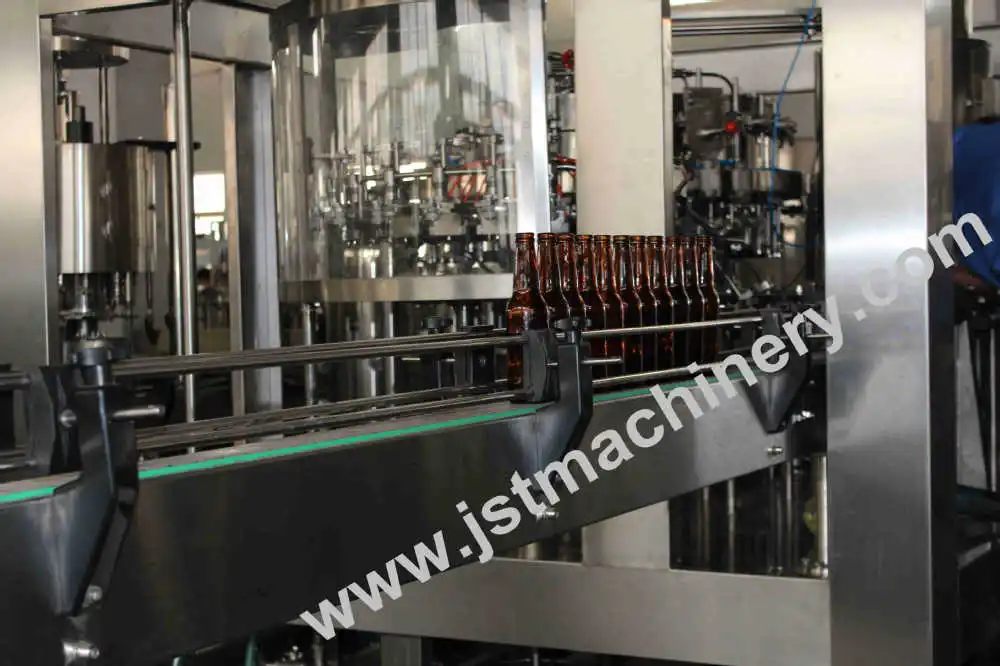

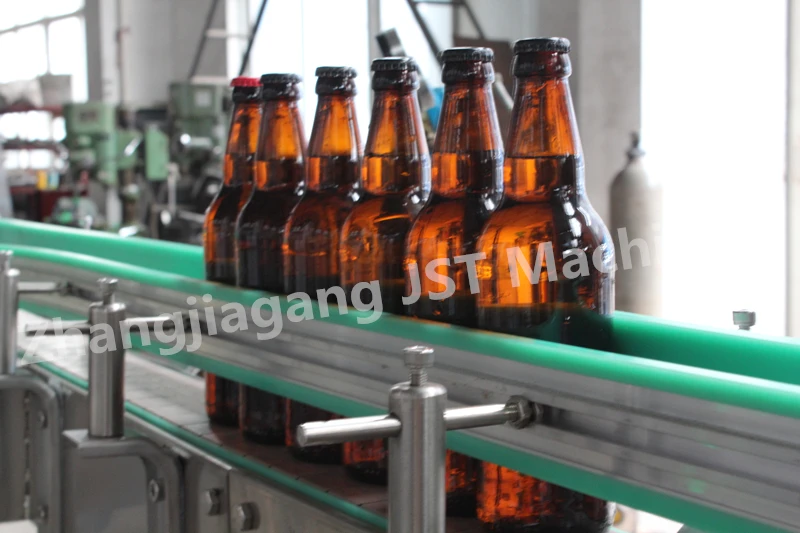

 Beer bottle inlet conveyor belt before rinsing filling capping :
 Beer bottle rinsing part (All is stainless steel 304)

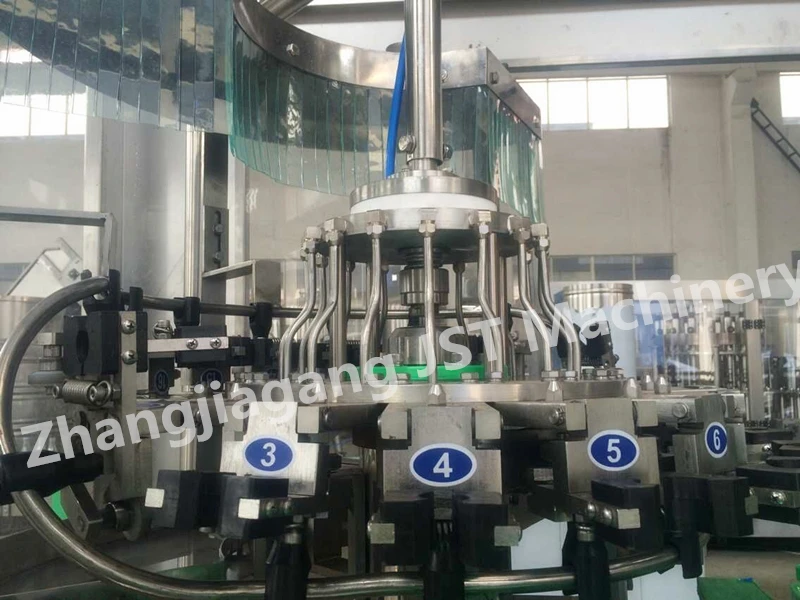

 Beer bottle filling nozzle ,with twice vacumm system detail photos :


Client visiting

We have water filling line ,Juice filling line ,Beer filling line ,vodka wine filling line ,5 gallon filling line in Nigeria ,Lebanon , Congo ,Zimbabwe , South sudan ,Boliva ,Northern Ireland ,Malaysia , Tanzania , Iran , Albania ,Sweden , and so on .



Packaging & Shipping



Our Services

After you see all these details' photos  ,why do you still hesitate not to contact us ?

 We have strong after-sales service team for beer drinking fillng machine .

 1)engineers abroad to install the complete filling line .

 2).We have two years' machine guarantee time

 3)We can help you design the bottles ,also labels, and calculate PE film size.(Becaue we have our own label and PE film  making factory )

 4)We have good English translators to communicate with you .

 5)We have client cases in different countries , we can provide their production working video for you .
